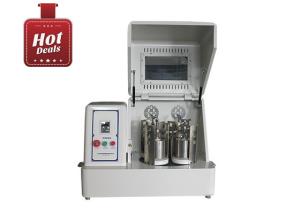

Laboratory Scale Ball Mill Safe For Micron Powder 4x2L Jars

Laboratory Scale Ball Mill Safe For Micron Powder 4x2L Jars

Product Introduction: Tencan 8L Planetary Ball Mill with 4×2L Milling Jars

This compact laboratory ball mill is engineered for precision micron and nano-scale powder processing, offering exceptional performance in material research and small-scale production. With four independent grinding positions, researchers can efficiently process multiple samples simultaneously, significantly improving experimental productivity.

Core Technology:

• Advanced planetary motion mechanism generates powerful grinding forces

• Precision-engineered gear system maintains consistent rotational speeds

• Intelligent frequency control allows adjustable RPM from 50 to 300

• Multi-directional grinding modes (continuous/intermittent/auto-reverse)

• Safety interlock system prevents operation when cover is open

Performance Specifications:

• Achieves particle sizes down to 0.1 micron (100nm)

• Supports both dry and wet grinding methodologies

• Compatible with vacuum milling jars (optional)

• Maximum batch capacity: 4×2L jars (8L total)

Research Applications:

Essential for advanced materials development in:

• Energy materials (battery cathodes, fuel cell components)

• Electronic ceramics (MLCC, varistors, piezoelectric materials)

• Nanocomposites and functional coatings

• Pharmaceutical and biomedical formulations

• Metallurgical sample preparation

Operational Advantages:

1. Multi-sample processing capability (4 distinct materials simultaneously)

2. Programmable operation with digital timer and rotation controls

3. Vibration-damped design for quiet laboratory operation

4. Compact footprint with high stability base

5. Compliant with international laboratory safety standards

Ideal for research institutions and quality control laboratories, this system combines precision engineering with operational flexibility for advanced materials processing. The integrated safety features and programmable controls make it particularly suitable for extended experimental runs and sensitive material applications.

Technical Features

Technical Parameters

Accessories of Grinding Pots & Balls

Available grinding pots in full sizes:

Stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc.

Available grinding balls in full sizes

Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, cemented carbide, crystal glass and other special metal materials.
